3310G Series

3310G Series DC Electronic Load

PRODUCT



PRODIGIT의 3310G DC Electronic Load는 1/2/4 채널 메인프레임에 결합하여 사용하는 1채널 DC전자부하기 모듈입니다.
CC / CR / CP / CC+CV / DYNAMIC / Short Mode, MPPT CC/CR/CV 테스트 기능을 갖추고 있습니다.

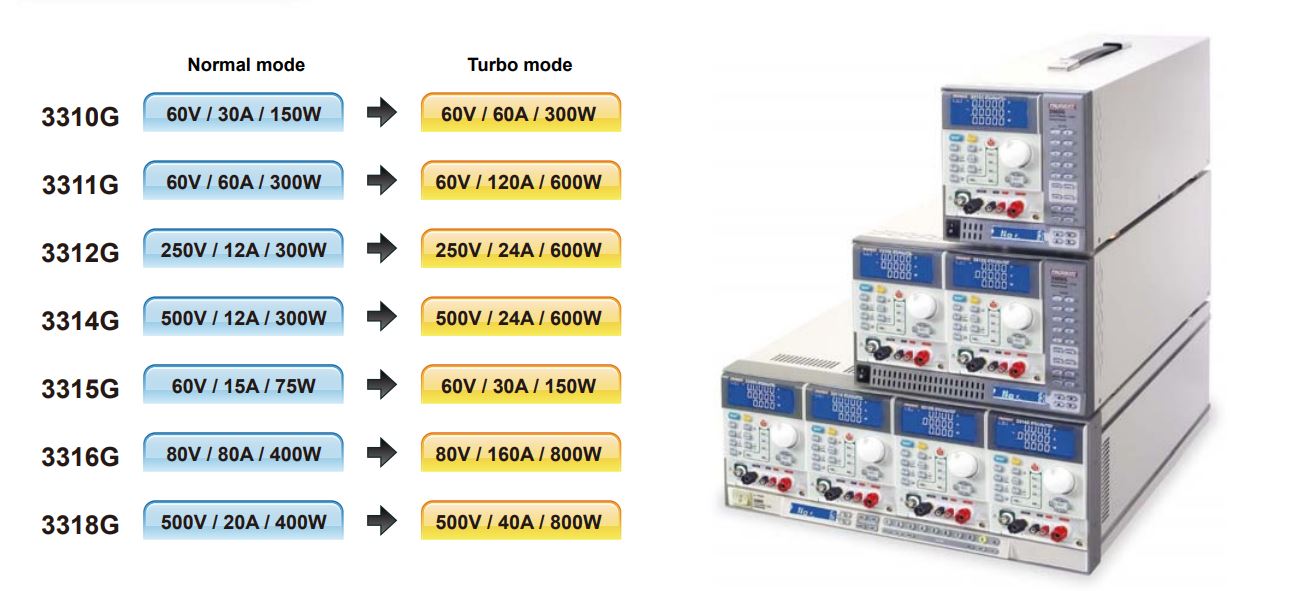

터보모드를 지원하여 일시적으로 최대 2배의 출력을 내보내 과부하 테스트 등에 활용이 용이합니다.

특징

◐ 5 digital V / A / W Meter can be displayed on Large LCD display simultaneously.
◐ Flexible CC, CR, CV, CP, CC + CV, CP + CV, Dynamic and short circuit operation modes.
◐ Built-in test modes include Battery Discharge, BMS, Fuse/Breaker Trip/Non-Trip, Short circuit, OCP, OPP test modes.
◐ Not only CC, CR, and CP mode have parallel operation functions, but CV mode also has parallel operation functions.
◐ Turbo mode can withstand up to 2 times the current and power electronic load within 2 sec. period，most fit Fuse/Breaker and BMS、Short circuit、OCP、OPP test.
◐ Provide battery BMS protection test function.
◐ High Slew Rate：3310G up to 5A/uS，3311G up to 10A/uS，3315G up to 2.5A/uS
◐ Support MPPT CC、CR、CV test function for solar panel.
◐ Short circuit duration can be set within short circuit test.
◐ Can set the power-on status value.
◐ Voltage meter display can be configured as polarity positive（”+”）or negative（”－”）.
◐ Synchronous parallel execution function（SYNC. Load on）
◐ Can be configured in the Mainframe of 3302G［single channel］、3305G［dual channels］or 3300G［Quad channels］，each mainframe has up to 150 sets Store/Recall memory.
◐ Optional programmable NTC Resistor（installed in mainframe）
◐ Optional Interface : GPIB、RS232、USB、LAN.
◐ Protection against V, I, W, and ℃.
◐ Optional 9923 load current waveform generator to provide the battery actual discharge current waveform simulation.
