3340G Series

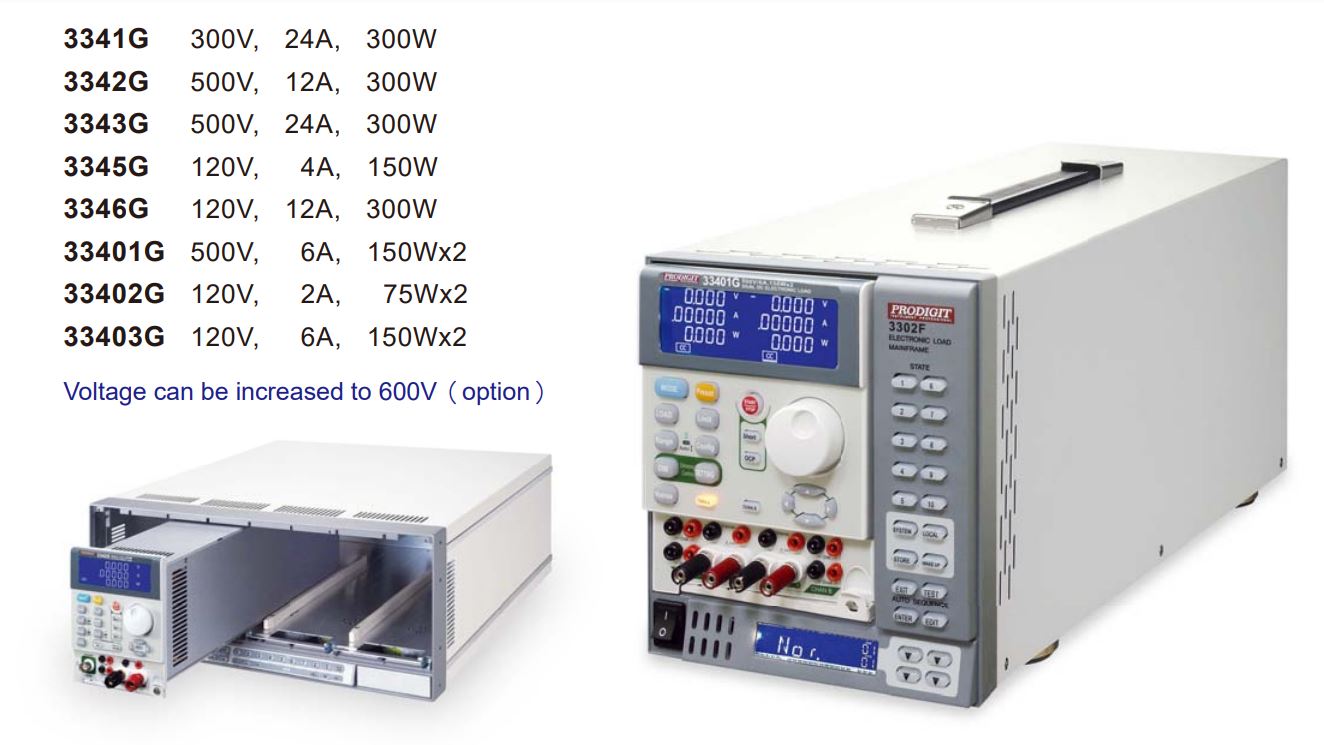

3340G Series LED DC Electronic Load Simulator

PRODUCT



3340G 시리즈 LED DC Electronic Load는 LED Power Driver Test에 최적회 된 장비입니다.
CC, CV, CP, LED, Dynamic 모드를 갖추고 있으며 LED Forward Bias Voltage (Vd) 와 Resistance (Rd) 테스트, PWM Dimming Test의 빠른 응답속도 및 내장 Dimming Control Signal 등을 갖추고 있습니다.

특징

◐ LED mode load for LED Power Driver test.
◐ CC, CR, CV, CP, LED and Dynamic mode.
◐ Simulate LED Forward Bias Voltage (Vd) and Resistance (Rd).
◐ Fast Response for PWM dimming test.
◐ Built-in dimming control signal for PWM dimming test.
◐ Short circuit test by external relay (built-in short relay driver circuit).
◐ 5 digital V / A / W Meter.
◐ Protections against V, I, W, and ℃.
◐ Can be configured in 3302F〔single channel mainframe〕、3305F〔two channels mainframe〕or 3300F〔four channels mainframe〕and the mainframe with 150 sets Store / Recall memory.
◐ Optional Interface：GPIB、RS232、USB、LAN
