34000A Series

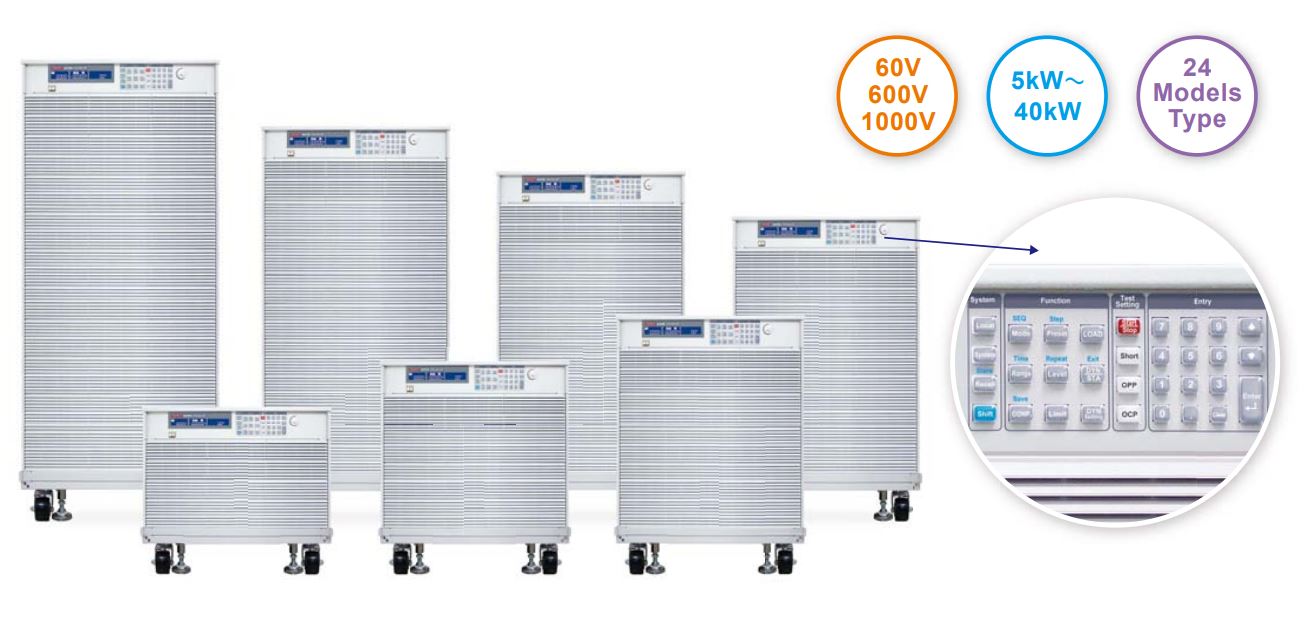

34000A Series High Power DC Electronic Load

PRODUCT



34000A 시리즈는 최대 1000V, 1000A, 병렬 연결로 8대 320kW까지 확장이 가능한 고용량 DC전자부하기 입니다.

특징

◐ Maximum power up to 320KW
◐ Maximum up to 8 units master / slave parallel control
◐ 5 digit V/A/W Meter.
◐ High-speed measurement and communication transmission.
◐ Large LCD Display、setting values can be adjusted by rotary knob or push button.
◐ Voltage、Current and Watt value can be displayed simultaneously.
◐ Capable for Power Factor Correction (PFC) Test. (for 600V,1000V models)
◐ OCP、OPP test function automatically.
◐ Power ON status can be set.
◐ CC, CR, CV, CP, Dynamic and Short operation mode.
◐ SHORT time setting.
◐ Protections against I,W,°C and over-voltage alert.
◐ Voltage meter display the polarity positive（”＋”） or negative（”－”）is selectable.
◐ Optional Interface : GPIB、RS232、USB、LAN.
◐ 0.7V @ 1000A is on Static condition, and the starting voltage must be greater than 5V, if on Dynamic condition that is 5V @ 1000A.
